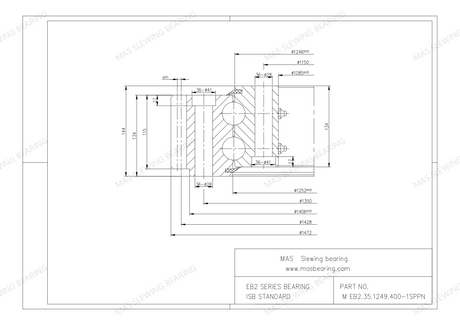

| ISB PART NO. | EB2.35.1249.400-1SPPN |
| MAS PART NO. | M EB2.35.1249.400-1SPPN |
| SERIES | EB2 |
| GEAR | External gear |
| TYPE | Ball |
| Outside Diameter De(mm) | 1472 |
| Internal Diameter On Outer Ring de(mm) | 1252 |
| External Diameter On Inner Ring di(mm) | 1246 |
| Internal Diameter Di(mm) | 1085 |
| Dx(mm) | 1406 |
| Height Of Outer Ring He(mm) | 134 |
| Height Of Inner Ring Hi(mm) | 134 |
| Total height Ht(mm) | 144 |
| Tooth height Hd(mm) | 115 |
| Bolt Circle In Out Ring Fe(mm) | 1350 |
| Bolt Circle In Inner Ring Fi(mm) | 1150 |
| Number Of Bolt Holes N | 36 |
| Hole Diameter V | 28 |
| Hole Diameter L | 41 |
| W | 27 |
| Tooth Moudles(m) | 14 |
| Number Of Tooth Z | 102 |
| xm(mm) | ﹢9.1 |
| Dp(mm) | 1428 |
| fz norm(KN) | 147.8 |
| fz max(KN) | 295.6 |
| Weight(KG) | 640 |
| Materiale | C42CrMo4 Q+T |
| Grease Nipples(G) | N.2+2 |
