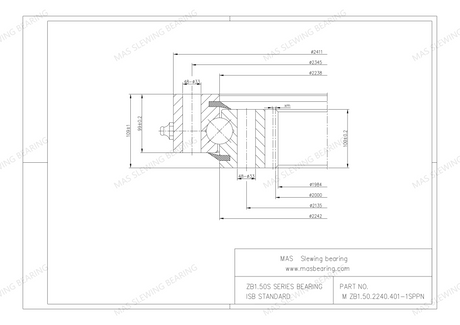

| ISB PART NO. | ZB1.50.2240.401-1SPPN |
| MAS PART NO. | M ZB1.50.2240.401-1SPPN |
| Outside Diameter De(mm) | 2471 |
| Internal Diameter On Outer Ring de(mm) | 2238 |
| External Diameter On Inner Ring di(mm) | 2242 |
| Internal Diameter Di(mm) | 1984 |
| Bolt Circle In Out Ring Fe(mm) | 2345 |
| Number Of Holes of Outer Ring Ne | 48 |
| Bolt Circle In Inner Ring Fi(mm) | 2135 |
| Number Of Holes of Inner Ring Ni | 48 |
| Tooth Moudles(m) | 16 |
| Number Of Tooth Z | 125 |
| xm(mm) | -8 |
| Dp(mm) | 2000 |
| fz norm(KN) | 146.8 |
| fz max(KN) | 293.6 |
| Weight(KG) | 961 |
| Materiale | 42CrMo4Q+T |
